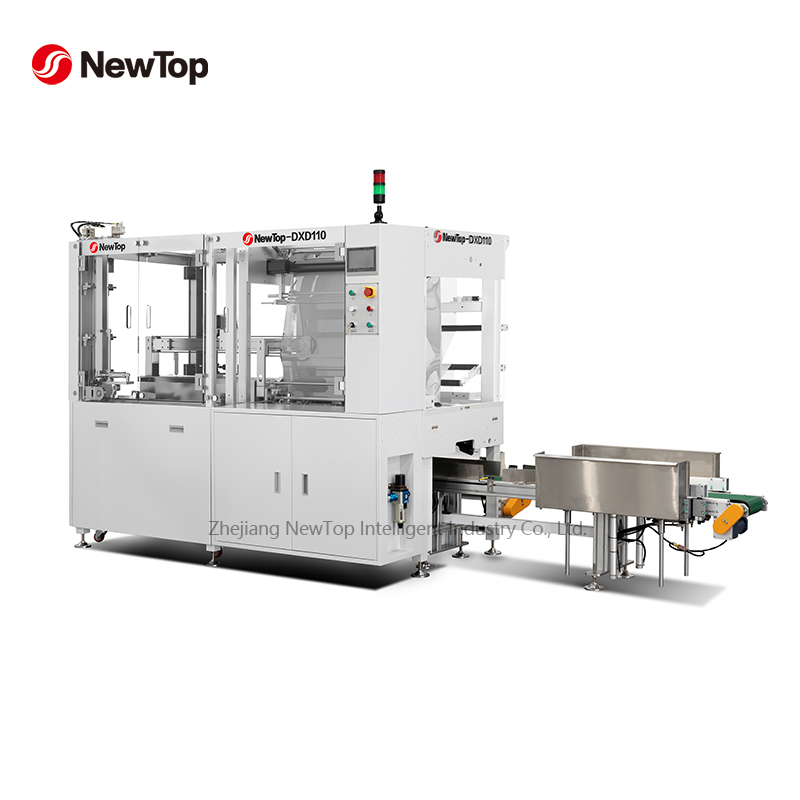

NEWTOP-DXD110150
High Speed Intellingent Paper Cup Packing Machine
NEWTOP-DXD70/10/150 high speed intelligent paper cup packing machine integrates the functions of automatic feeding, sealing, sorting and venting.It can be linked with 2 sets of paper cup machines forfully automatic production. The 2024 new model increases the stopping receiving port. The packing machine can also operate independently when linked with the papercup machine, and its shutdown won’t affect the running of the papercup machine! The length offilm feeding can be adjusted automatically according tothe size of paper cup caliber Besides, labeling machine and inkjet printer are optional for tracking colorlabels printing production date, production batch number and running number for paper container products. It is the best choice for automated production!
Model | NEWT0P-DXD70/110/150 |
Ağırlık | 1400 kg |
Makine muhafaza boyutu | 2400×1700×2000mm |
Nominal güç | Double-phase, 220V, 5KW |
Basınçlı hava | 0.5~0.7MPa, 0.3m³/min |
Packing speed | 15/15/12 bags/min |
Plastic film material | HDPE / LDPE |
Packing film thickness | 15um-50um |
Stacking height | 250-650mm |
Packing diameter | Φ 55-70mm, Φ70-110mm, Φ110-150mm |
