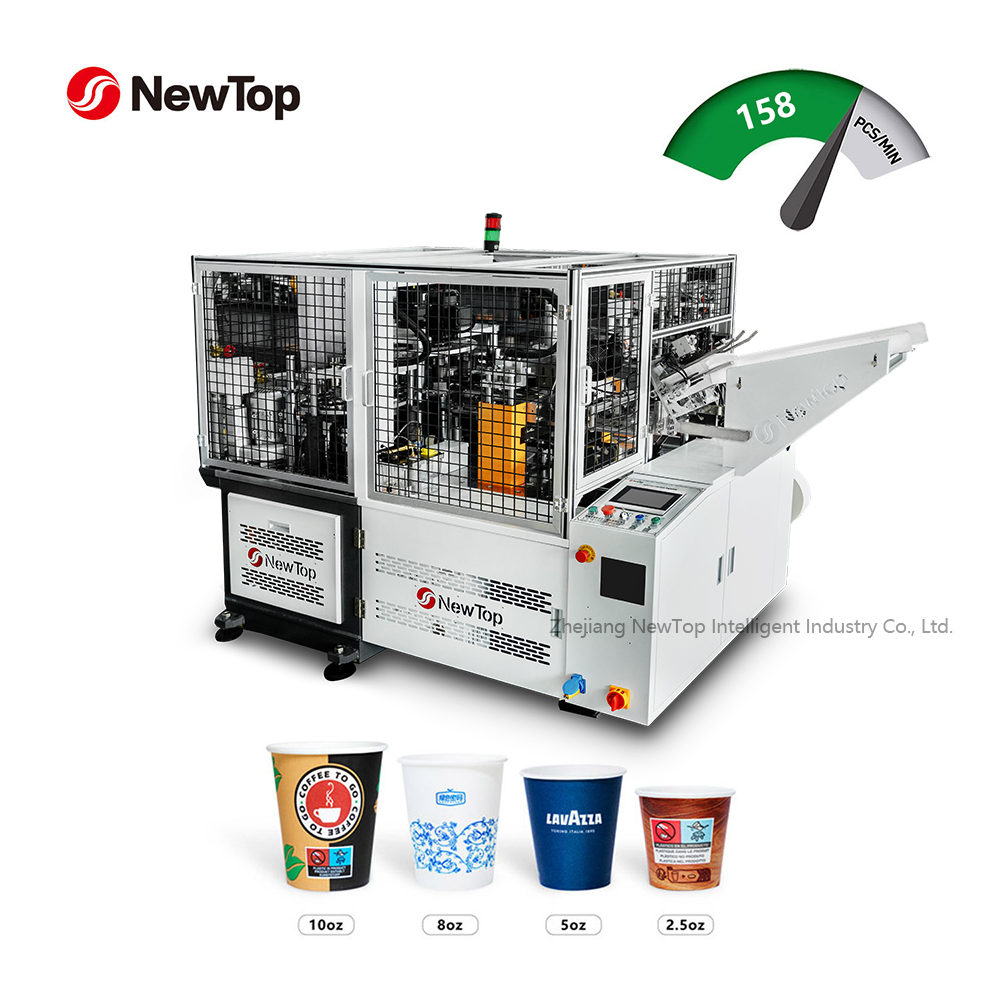

NEWTOP-FB100S Servo Paper Cup Machine

Product Information

Machine parameter

Product Information

Machine parameter

Mechanical Quality Guarantee

1. Mechanical parts are guaranteed for 3 years, electrical parts and vulnerable parts are guaranteed for 1 year.

2. All parts on forming table are easy to access for maintenance.

3. All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.

Production Efficiency

1. Production output up to 81,600 cups per shift (8 hours), up to 6.2 million cups per month (3 shifts).

2. Percentage of pass is higher than 99% under normal production.

3. One operator can handle several machines at the same time.

Supplier Quality Guarantee

Model	NEWTOP-FB100S
Weight	2000kg
Machine encasement dimension	2200x1500x2000mm
Cup counting holder packing specifications	1230x610x1900mm
Rated power	Three-phase 380V、22KW
Compressed air	0.5-0.7MPa、0.5m3/min
Max Capacity	170pcs/min
Paper materials	Single PE
Paper thickness	0.22-0.35mm
Product range	(D1) φ50-80mm (H)40-90mm (D2) φ35 56mm (H)5-8mm
