NEWTOP-135S
intelligent paper cup machine
معلومات المنتج
معلمات الآلة
معلومات المنتج
السلوك الميكانيكي

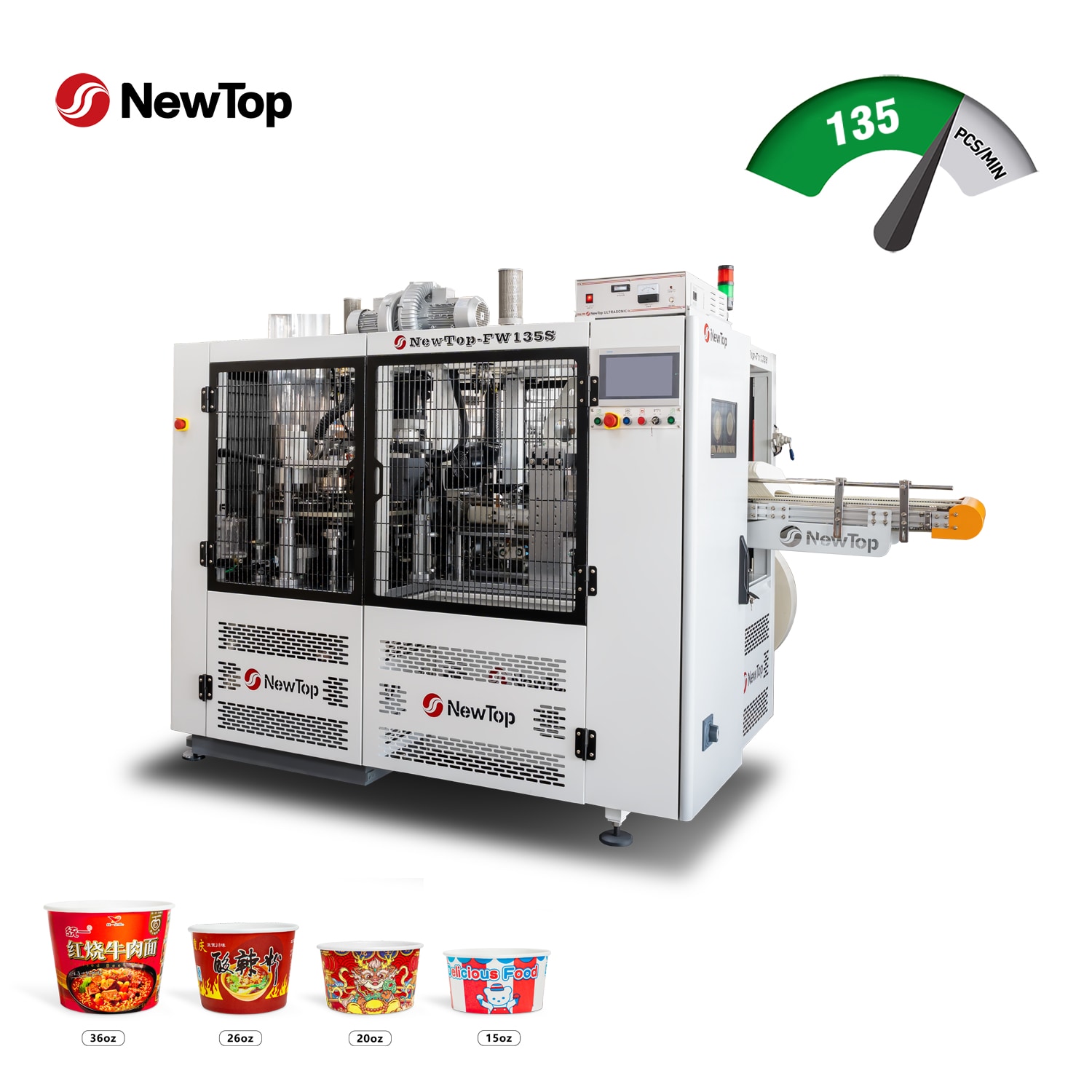

The NEWTOP-FW135S is a next-generation intelligent paper cup forming equipment that has been comprehensively optimized and upgraded. Centered on digital servo control, it integrates Ethernet real-time synchronization, electronic cam, and common DC bus control solutions. The machine features independent cam-driven base heating, extending heating time and enhancing bonding effects. Its exterior adopts a new industrial design with an integrated sheet metal body and isolated pipeline layout, ensuring more efficient heat dissipation and safer operation and maintenance. It is suitable for 10oz–45oz paper cup production, with a maximum output capacity of 135 pieces per minute.
معلمات الآلة
| سعة | Max135 | نمط المنتج |
| الوزن | 3500KG |  |
| حجم العبوة (قياسي) | 2.4×1.9×2.26(M) | |
| مزود الطاقة | Three-phase 380V, 46kw | |
| إمداد الهواء | 0.6~0.8MPa，0.5M³/min | |
| إمداد الهواء | Single PE / Double PE / PLA | |
| سمك الورق | 0.2825~0.445 | |
| Top Diameter (D1) | Ø100~145mm | |
| Bottom Diameter (D2) | Ø80~115mm | |
| Forming Height (H) | 50~110mm | |
| Bottom Depth (h) | 5~10mm |
Core strengths 1. All-new industrial design:The integrated sheet metal body delivers enhanced thermal performance and structural stability, setting a new benchmark in smart cup manufacturing.
2. Capacity Upgrading:The maximum production capacity increased from 128 units per minute to 135 units per minute, resulting in a production efficiency improvement of approximately 5.5%.
3. Easier to install and maintain:The door body has been upgraded to an upper-lower integrated large-sized inspection door, providing a more spacious operating area and more convenient assembly and debugging.
4.Comprehensive Security Reinforcement:Automatic shutdown protection upon door opening effectively safeguards operators' safety, ensuring a more secure maintenance process.
