NEWTOP-JA200
Paper Cup AI Visual Inspection Machine
معلومات المنتج
معلمات الآلة
معلومات المنتج
السلوك الميكانيكي

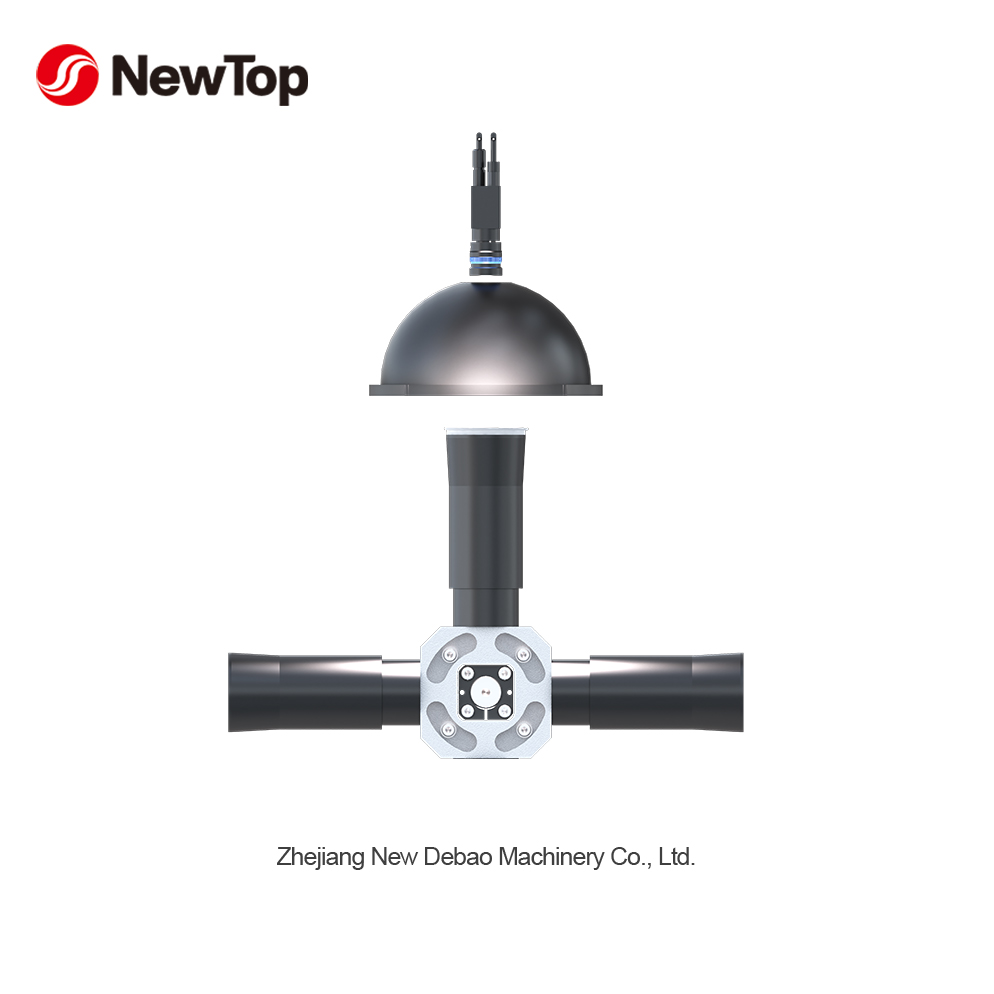

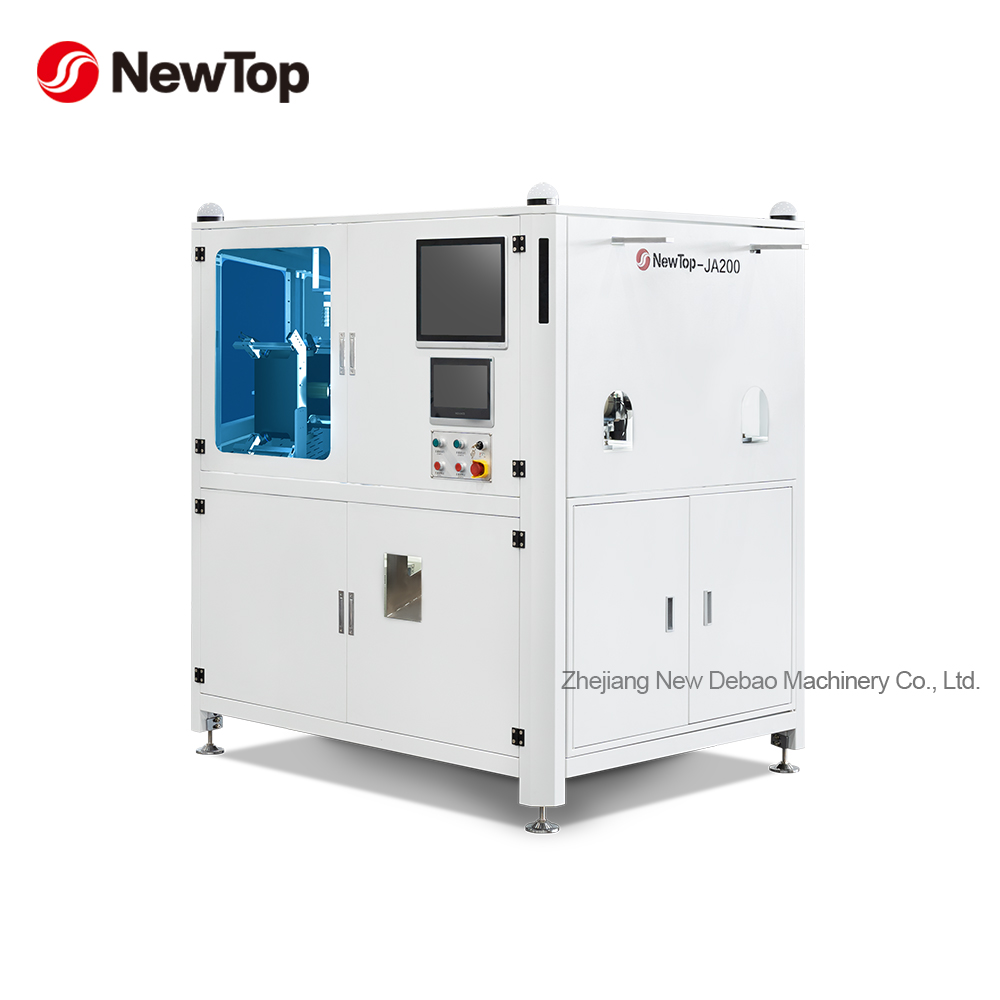

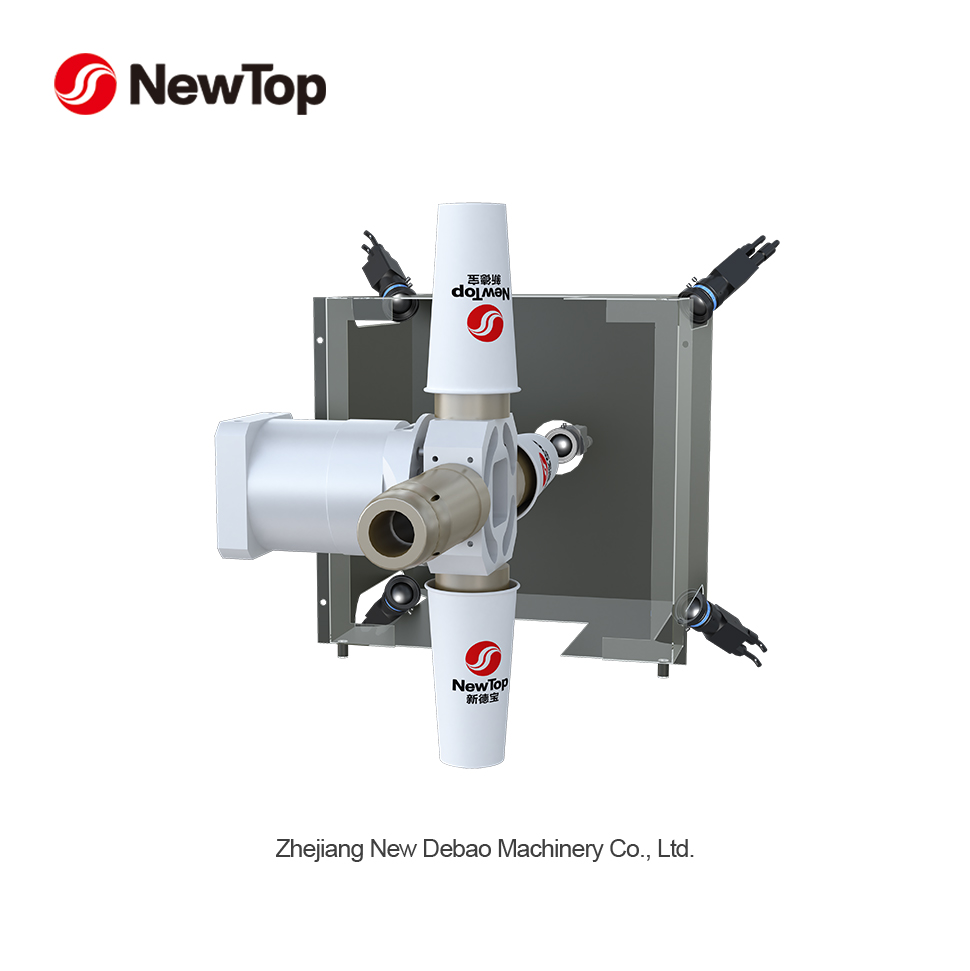

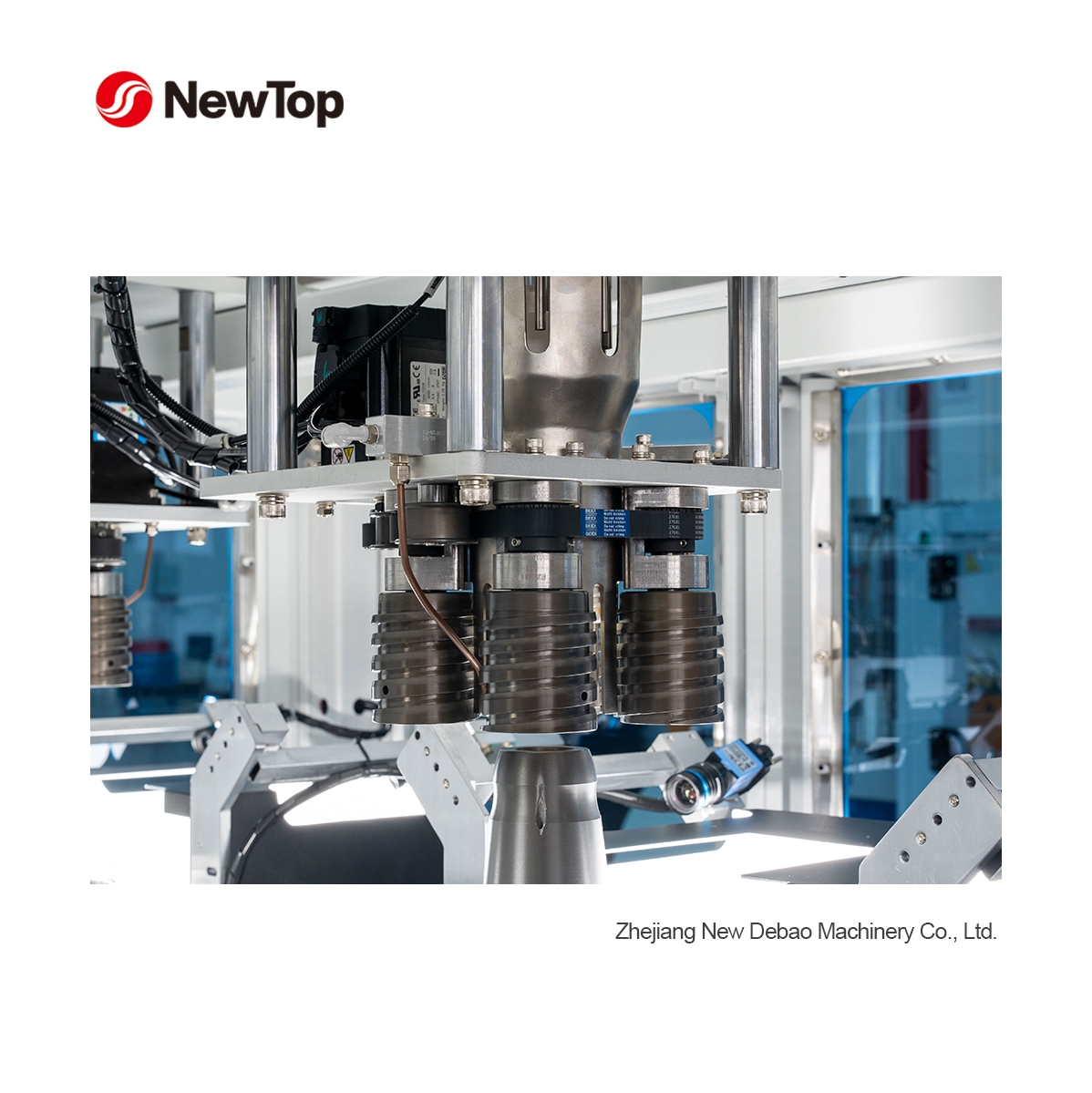

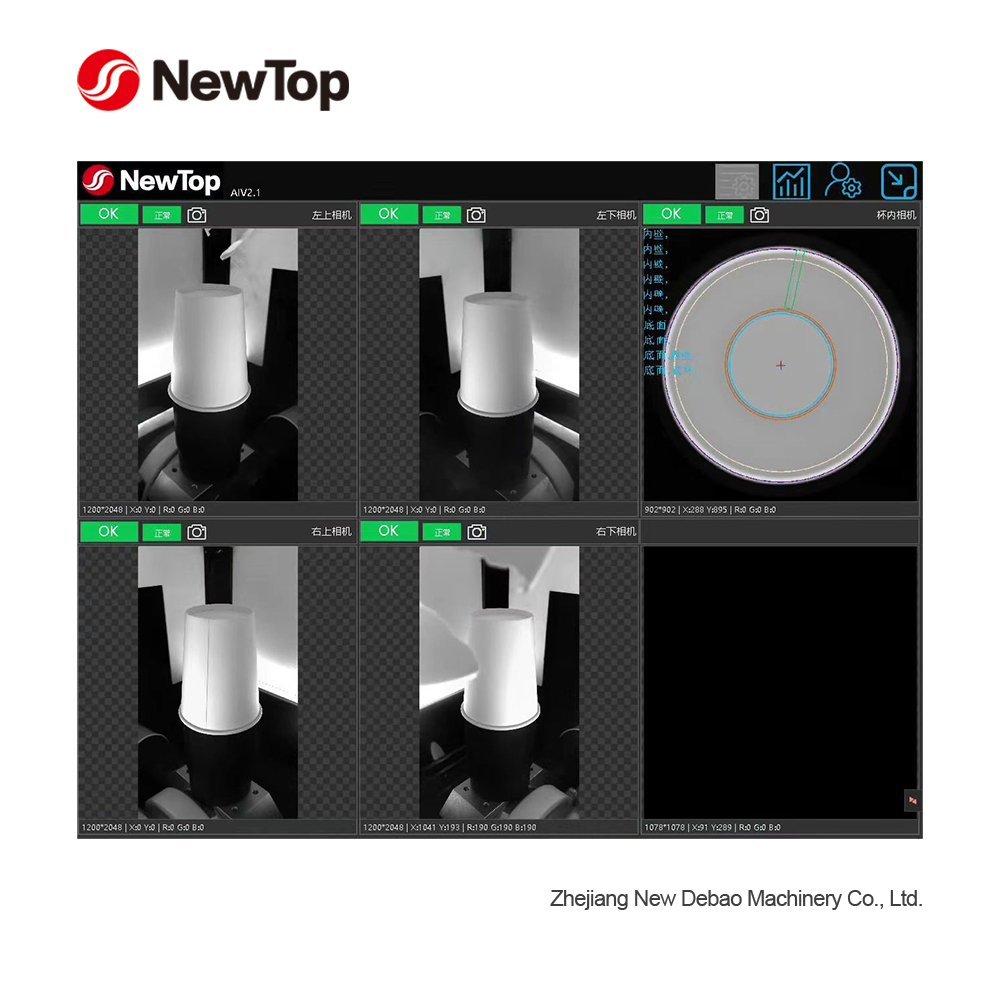

The NEWTOP-JA200 paper cup AI visual inspection machine comes with 12 industrial cameras covering the cup rim, inside, bottom, and outer wall. Using an unsupervised AI algorithm, it doesn’t need manual labeling and can accurately detect stains, bursts, collapsed bottoms, and embossing defects. It can inspect up to 160 cups per minute at high speed, fits standard 7OZ-16OZ paper cups, has a standalone body that can connect to various forming production lines, automatically removes defective cups, and keeps inspection data, completely replacing manual quality checks.
معلمات الآلة
| Item | الإسم | Specification | Remarks |
| نموذج | NewTop-JA200 | Independent AI Visual Inspection Machine |  |
| الوزن | 1000Kg | ||
| Main Unit Dimension | 1.75×1.35×1.8m | ||
| Electrical Parameter | 3-phase 380V, 9kW | ||
| Pneumatic Requirement | 0.3–0.5MPa, 0.2 m³/min | ||
| Production Capacity | 160 pcs/min | ||
| Package Size Range | H: 70–140mm | ||
| D: φ70–100mm |
